Products
Standard media converter now stocked
Tuesday, June 8th, 2010
Norbeck Ltd are now stocking a standard media converter suitable for a RJ45 connection to either an ST or SC Multimode fibre
- 100MBps
- Full or half-duplex
- Dimensions: 26(h) x 71(w) x 97mm(d)
- UK power lead
Full details will shortly be in our online shop
Norbeck now stock a variety of Cisco compatible SFP’s
Tuesday, June 8th, 2010
GLC-SX-MM-C – Cisco Compatible SFP (mini-GBIC) transceiver module
- Manufacturer: ProLabs
- Part Code: GLC-SX-MM-C
- Product Description: Cisco SFP (mini-GBIC) transceiver module
- Device Type: SFP (mini-GBIC) transceiver module
- Enclosure Type: Plug-in module
- Dimensions (WxDxH): 1.3 cm x 5.7 cm x 0.9 cm
The industry-standard Cisco Small Form-factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. The 1000BASE-SX SFP is compatible with the IEEE 802.3z 1000BASE-SX standard and operates on 50 micrometer multimode fibre links up to 550 m and on 62.5 micrometer FDDI-grade multimode fibres up to 220 m.
- Product Description – Cisco SFP (mini-GBIC) transceiver module
- Device Type – SFP (mini-GBIC) transceiver module
- Enclosure Type – Plug-in module
- Dimensions (WxDxH) - 1.3 cm x 5.7 cm x 0.9 cm
- Weight - 75 g
- Cabling Type – 1000Base-SX
- Data Transfer Rate - 1 Gbps
- Optical Wave Length- 850 nm
- Data Link Protocol – Gigabit Ethernet
- Max Transfer Distance – 550 m
- Compliant Standards - IEEE 802.3z
- Manufacturer Warranty - 90 days warranty
Full details will shortly be in our online shop
Cost effective Wireless Bridge Kit
Saturday, May 8th, 2010
Norbeck Ltd have been working with the manufactures of the FS1000-cp ( http://www.freespacenetworks.co.uk/ ) to provide secure cost effective wireless solutions across the country with positive results.
Free space networks also produce the bigger brother to the 2km FS1000 the FS2000 which is capable of 15km in various specifications.
We can also offer a site survey to determine site suitability.
Features of the FS1000-cp

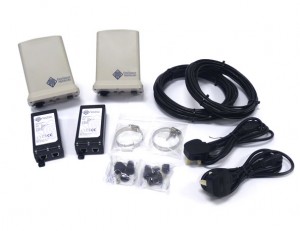

The FS1000-cp Wireless Bridge Kit is a high performance industrial wireless Point to Point ethernet bridge system. The FS1000-cp is specifically designed for short range wireless bridging applications and comes supplied as a complete installation kit including a linked pair of factory configured FS1000′s.
Each FS1000 takes FreeSpace Networks� leading edge wireless platform and delivers it in a compact IP67 unit. Small form factor, with a fully integrated antenna and powerful onboard WEB server ensures the feature packed FS1000 is simple to use, configure and install. The FS1000 supports all 5Ghz license exempt frequencies with operation through a single radio, and has been optimised for Fixed Wireless Access (FWA) applications including building to building links for data and voice, wireless ethernet bridges and data back-haul, wireless CCTV applications, hotspots and network backbone installations.
User password, Hidden SSID, smart MAC address access control system and inbuilt hardware encryption provides an unparalleled level of transmission protection and data security. The FS1000 supports all mandatory and optional modes specified in 802.11i, a 128-entry Key Cache holds both shared and unique keys on a per-station basis and gives you WPA and WPA2 as standard.
In addition to supporting standard 802.11a operation, the FS1000 also offers 108Mbps Turbo mode and a range of performance enhancing options. These enable the FS1000 to achieve a usable data throughput in excess of 80Mbits per second.
Applications: The FS1000-cp is a factory configured bridge kit designed for short range applications up to 2km.
Wireless links for
- CCTV
- DATA
- VOIP
- Building to Building links
- Commercial Network Expansion
- Wireless Backhaul
- Fibre and Leased Line Backup
- Citywide IP Networks
- Covert Security Surveillance
- Residential Access Control
- CCTV Security
- Last Mile Access
- WAN/MAN Networks
Features:
- Factory configured bridge kit
- 5.1-5.875 GHz operation, subject to local restrictions
- Small form factor IP67 enclosure
- 8dBi 60� integrated antenna
- Power over Ethernet as standard
- Full Duplex 10/100 auto crossover IP67 interface
- 802.11h (DFS/TPS/Radar Support)
- 128 Bit AES hardware based encryption
- WPA & WPA2 as standard
- Hardware data compression
- Less than 6W under full load
- Low Carbon Footprint
Full details will shortly be in our online shop
Nexans LANmark 7A cable, connectors and patch cords
Saturday, March 13th, 2010
Nexans have just released their Cat 7a line up capable of 40 Gigabit.
They have called this LANmark-7A.
LANmark-7 is the highest performance standards compliant, copper solution available in the market. This Category 7/Class F solution provides backwards compatible performance beyond 600MHz and features the revolutionary GG45 connector.
Recommended uses:
- Very long lifetime needs (>15years)
- Composite analogue & high speed digital data
- Multiple service applications (voice, data, video using different pairs in the same cable)
- Very high electromagnetic noise environments
- Installations where the relacement cost is very high (e.g. ships etc)
Nato Fibre Optic Termination Cabinets – 24 way variant.
Tuesday, March 9th, 2010
Norbeck were asked to manufacture a 24 way fibre optic termination cabinet to meet with the strict guidelines as set out by the MOD. The cabinet is specifically designed to have a very low vibration signature. The cabinet was sent for stringent testing and following this was put into production.
The Nato part number is NSN 5975-99-940-6044.
The cabinets are designed for afloat fits, the lockable metal cabinet is used to protect the delicate ends of the fibres and the connectors. The cabinet is divided into two unequal sections by a vertical internal panel which houses the loaded inlines. The cabinet has a separate outward-opening hinged door for each section. Each door has two sprung retaining fasteners which secure the door closed.
Each cabinet has 4 fixing holes on the rear panel for allowing a secure fixing to any flat surface.
The larger section of the cabinet is normally used to house the LAN fixed fibres and is fitted with cable management. There are 6 x 20mm holes in the top section and 6 x 20mm holes in the bottom plate.
The smaller section of the cabinet is used for fibre fly leads for connection to network devices. There are 4 x 20mm holes in the top and 4 x 20mm holes in the bottoms section.
Each cabinet has all the 20mm holes blanked off with grommets and is supplied with 6 x M20 cable entry glands for installation on site. They are also fitted with 24 multimode inlines.
Labels are fitted both inside and out to allow easy identification.
These cabinets are available now, please ring for full details, pricing and availability.
